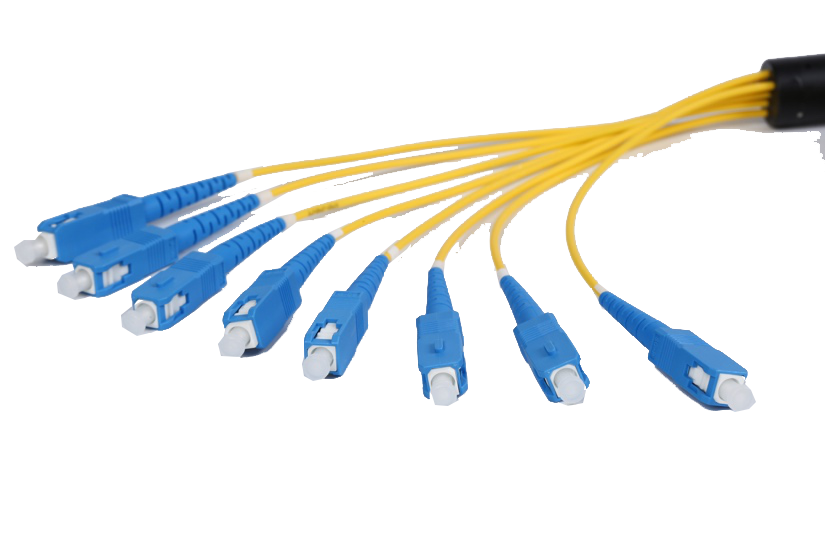

预端接分支光缆跳线
简要描述：小型化金属分支保护器
连接器组件经工厂预先端接、100%测试
供货时含光衰减测量报告
可提供4芯-144芯预端接跳线
支持OS2、OM1、OM2、OM3、OM4、OM5
可提供低损耗产品
根据客户的要求定制长度
大于50米带轴包装
可提供双护套干光缆
可定制带拉环
产品描述
小型化金属分支保护器
连接器组件经工厂预先端接、100%测试
供货时含光衰减测量报告
可提供4芯-144芯预端接跳线
支持OS2、OM1、OM2、OM3、OM4、OM5
可提供低损耗产品
根据客户的要求定制长度
大于50米带轴包装
可提供双护套干光缆
可定制带拉环
规格
| 跳线接口类型 | LC/SC/FC/ST/E2000 |
| 光缆结构 | 单管双芯/双芯双芯 |
| 总长度 | 可定制 |
| 分支长度 | 可定制 |
| 研磨端面 | APC/UPC/PC |
| LC纤芯选项 | OS2/OM1/OM2/OM3/OM4/OM5 |
| 光缆护套 | LSZH/OFNR/OFNP |
订购信息
| 序号 | 产品型号 | 产品描述 | 光纤芯数 | 第一连接器 | 第一端面 | 第二连接器 | 第二端面 | 单/多模 |
| 1 | D08LULUS1L0-xxxM | Uniboot Minicore LSZH, no pulling eye | 8 | LC | UPC | LC | UPC | OS1/OS2 |
| 2 | D12LULUS1L0-xxxM | Uniboot Minicore LSZH, no pulling eye | 12 | LC | UPC | LC | UPC | OS1/OS2 |
| 3 | D24LULUS1L0-xxxM | Uniboot Minicore LSZH, no pulling eye | 24 | LC | UPC | LC | UPC | OS1/OS2 |
| 4 | D08CUCUS1L0-xxxM | Uniboot Minicore LSZH, no pulling eye | 8 | SC | UPC | SC | UPC | OS1/OS2 |
| 5 | D12CUCUS1L0-xxxM | Uniboot Minicore LSZH, no pulling eye | 12 | SC | UPC | SC | UPC | OS1/OS2 |
| 6 | D24CUCUS1L0-xxxM | Uniboot Minicore LSZH, no pulling eye | 24 | SC | UPC | SC | UPC | OS1/OS2 |
| 7 | D08LPLPM3L0-xxxM | Uniboot Minicore LSZH, no pulling eye | 8 | LC | PC | LC | PC | OM3 |
| 8 | D12LPLPM3L0-xxxM | Uniboot Minicore LSZH, no pulling eye | 12 | LC | PC | LC | PC | OM3 |
| 9 | D24LPLPM3L0-xxxM | Uniboot Minicore LSZH, no pulling eye | 24 | LC | PC | LC | PC | OM3 |
| 10 | D08CPCPM3L0-xxxM | Uniboot Minicore LSZH, no pulling eye | 8 | SC | PC | SC | PC | OM3 |
| 11 | D12CPCPM3L0-xxxM | Uniboot Minicore LSZH, no pulling eye | 12 | SC | PC | SC | PC | OM3 |
| 12 | D24CPCPM3L0-xxxM | Uniboot Minicore LSZH, no pulling eye | 24 | SC | PC | SC | PC | OM3 |
| 13 | D08LPLPM4L0-xxxM | Uniboot Minicore LSZH, no pulling eye | 8 | LC | PC | LC | PC | OM4 |
| 14 | D12LPLPM4L0-xxxM | Uniboot Minicore LSZH, no pulling eye | 12 | LC | PC | LC | PC | OM4 |
| 15 | D24LPLPM4L0-xxxM | Uniboot Minicore LSZH, no pulling eye | 24 | LC | PC | LC | PC | OM4 |
| 16 | D08CPCPM4L0-xxxM | Uniboot Minicore LSZH, no pulling eye | 8 | SC | PC | SC | PC | OM4 |
| 17 | D12CPCPM4L0-xxxM | Uniboot Minicore LSZH, no pulling eye | 12 | SC | PC | SC | PC | OM4 |
| 18 | D24CPCPM4L0-xxxM | Uniboot Minicore LSZH, no pulling eye | 24 | SC | PC | SC | PC | OM4 |
