室外光缆
简要描述：AOCCIT提供从户外铠装光缆、非铠装防鼠咬防护光缆、IP68级防水光缆配套设施到野战部署方案，AOCCIT均能表现出卓越的性能。我们可以提供各种类型铠装光缆解决方案、铠装预端接光缆解决方案、IP68级防水通讯解决方案、野战部署解决方案等，AOCCIT均能在几乎所有恶劣环境中实现稳定的网络性能和优质网络保障。

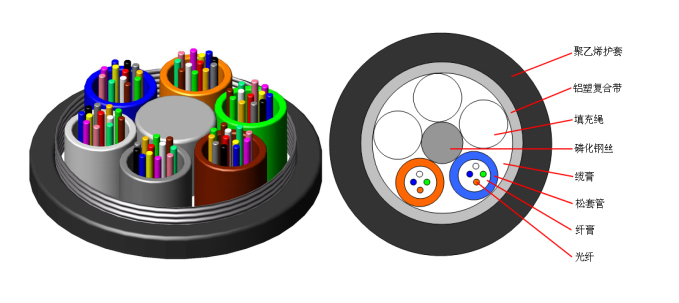

光缆设计
产品描述
适用于户外主干布线光缆;
提供2-288芯光缆
采用松套层胶式结构
光缆中心钢材加强件
管内充以特种油膏,对光纤进行了关键性保护;
缆芯阻水油膏全填充可有效防水;
防啮齿类动物损坏
铝带纵包,良好的挡潮性能,也可选用钢带纵包,具有良好的抗侧压性能。
金属中心加强件使光缆可承受更大的拉力。
根据客户的要求定制长度
规格
机械特性
订购信息
产品描述
适用于户外主干布线光缆;
提供2-288芯光缆
采用松套层胶式结构
光缆中心钢材加强件
管内充以特种油膏,对光纤进行了关键性保护;
缆芯阻水油膏全填充可有效防水;
防啮齿类动物损坏
铝带纵包,良好的挡潮性能,也可选用钢带纵包,具有良好的抗侧压性能。
金属中心加强件使光缆可承受更大的拉力。
根据客户的要求定制长度
规格
| 光纤芯数 | 2-288芯 |
| 纤芯选项 | OS2/OM1/OM2/OM3/OM4/OM5 |
| 光纤特征 | 裸纤层：250μm;涂护层900μm；涂护颜色：12色 |
| 光缆护套 | LSZH/PE |
| 中心加强件材料 | 钢材 |
| 护套颜色 | 黑色 |
| 波长(nm) | 单模1310/1550，多模850/1300 |
| 总长度 | 可定制 |
机械特性
| 光缆芯数 | / | 2~30 | 32~60 | 62~72 | 74~96 | 98~120 | 122~144 | ||
| 结构 | / | 1+5 | 1+5 | 1+6 | 1+8 | 1+10 | 1+12 | ||
| 光纤类型 | / | G.652D | |||||||
|
中心 加强件 |
材料 | mm | 磷化钢丝 | ||||||
| 尺寸（平均值） | 1.4 | 1.4 | 2.0 | 2.0 | 2.0 | 2.0 | |||
| 垫层 | 材料 | mm | 中密度聚乙烯 | ||||||
| 尺寸（平均值） | — | — | — | 3.3 | 4.4 | 6. | |||
| 松套管 | 材料 | mm | PBT | ||||||
| 直径（平均值） | 1.7 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | |||
| 壁厚（平均值） | 0.32 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | |||
| 每管最大芯数 | 6 | 12 | 12 | 12 | 12 | 12 | |||
| 塑管色谱 | 全色谱 | ||||||||
| 光纤余长 | % | 0.7~0.8 | |||||||
| 阻水层 | 材料 | / | 缆膏 | ||||||
| 铠装层 | 材料 | mm | 铝塑复合带 | ||||||
| 厚度（平均值） | 0.25 | ||||||||
| 外护套 | 材料 | mm | 中密度聚乙烯 | ||||||
| 厚度（平均值） | 标称值：1.8最小值：1.5平均值：1.6 | ||||||||
| 光缆直径（平均值） | mm | 9.0 | 9.7 | 10.0 | 11.4 | 13.0 | 14.5 | ||
| 光缆重量（近似值） | kg/km | 80 | 90 | 110 | 140 | 170 | 200 | ||
| 衰减系数最大值 | 1310nm | dB/km | 0.35 | ||||||
| 1550nm | 0.21 | ||||||||
| 拉伸力 | 长期 | N | 600 | ||||||
| 短暂 | 1500 | ||||||||
| 压扁力 | 长期 | N/100mm | 300 | ||||||
| 短暂 | 1000 | ||||||||
| 弯曲半径 | 静态 | mm | 10倍光缆外径 | ||||||
| 动态 | 20倍光缆外径 | ||||||||
| 温度 | 安装 | ℃ | -20~+60 | ||||||
| 储存和运输 | -40~+70 | ||||||||
| 工作 | -40~+70 | ||||||||
订购信息
| 序号 | 光纤芯数 | 光缆名称 | 产品描述 | 光缆类型 | 外护套 | 产品型号 |
| 217 | 2-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | SM | LSZH | F908-002S1E |
| 218 | 2-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | MM (50, 62.5) | LSZH | F908-002M2E |
| 219 | 2-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | 10G (OM3) | LSZH | F908-002M3E |
| 220 | 2-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | 10G (OM4) | LSZH | F908-002M4E |
| 221 | 4-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | SM | LSZH | F908-004S1E |
| 222 | 4-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | MM (50, 62.5) | LSZH | F908-004M2E |
| 223 | 4-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | 10G (OM3) | LSZH | F908-004M3E |
| 224 | 4-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | 10G (OM4) | LSZH | F908-004M4E |
| 225 | 6-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | SM | LSZH | F908-007S1E |
| 226 | 6-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | MM (50, 62.5) | LSZH | F908-007M2E |
| 227 | 6-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | 10G (OM3) | LSZH | F908-007M3E |
| 228 | 6-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | 10G (OM4) | LSZH | F908-007M4E |
| 229 | 8-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | SM | LSZH | F908-008S1E |
| 230 | 8-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | MM (50, 62.5) | LSZH | F908-008M2E |
| 231 | 8-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | 10G (OM3) | LSZH | F908-008M3E |
| 232 | 8-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | 10G (OM4) | LSZH | F908-008M4E |
| 233 | 12-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | SM | LSZH | F908-012S1E |
| 234 | 12-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | MM (50, 62.5) | LSZH | F908-012M2E |
| 235 | 12-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | 10G (OM3) | LSZH | F908-012M3E |
| 236 | 12-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | 10G (OM4) | LSZH | F908-012M4E |
| 237 | 24-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | SM | LSZH | F908-024S1E |
| 238 | 24-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | MM (50, 62.5) | LSZH | F908-024M2E |
| 239 | 24-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | 10G (OM3) | LSZH | F908-024M3E |
| 240 | 24-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | 10G (OM4) | LSZH | F908-024M4E |
| 241 | 48-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | SM | LSZH | F908-048S1E |
| 242 | 48-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | MM (50, 62.5) | LSZH | F908-048M2E |
| 243 | 48-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | 10G (OM3) | LSZH | F908-048M3E |
| 244 | 48-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | 10G (OM4) | LSZH | F908-048M4E |
| 245 | 72-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | SM | LSZH | F908-072S1E |
| 246 | 72-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | MM (50, 62.5) | LSZH | F908-072M2E |
| 247 | 72-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | 10G (OM3) | LSZH | F908-072M3E |
| 248 | 72-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | 10G (OM4) | LSZH | F908-072M4E |
| 249 | 96-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | SM | LSZH | F908-096S1E |
| 250 | 96-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | MM (50, 62.5) | LSZH | F908-096M2E |
| 251 | 96-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | 10G (OM3) | LSZH | F908-096M3E |
| 252 | 96-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | 10G (OM4) | LSZH | F908-096M4E |
| 253 | 144-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | SM | LSZH | F908-144S1E |
| 254 | 144-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | MM (50, 62.5) | LSZH | F908-144M2E |
| 255 | 144-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | 10G (OM3) | LSZH | F908-144M3E |
| 256 | 144-Fiber | Outdoor | GYTA 波纹铝带+金属加强件Armored Cable with Central Strength Member | 10G (OM4) | LSZH | F908-144M4E |
