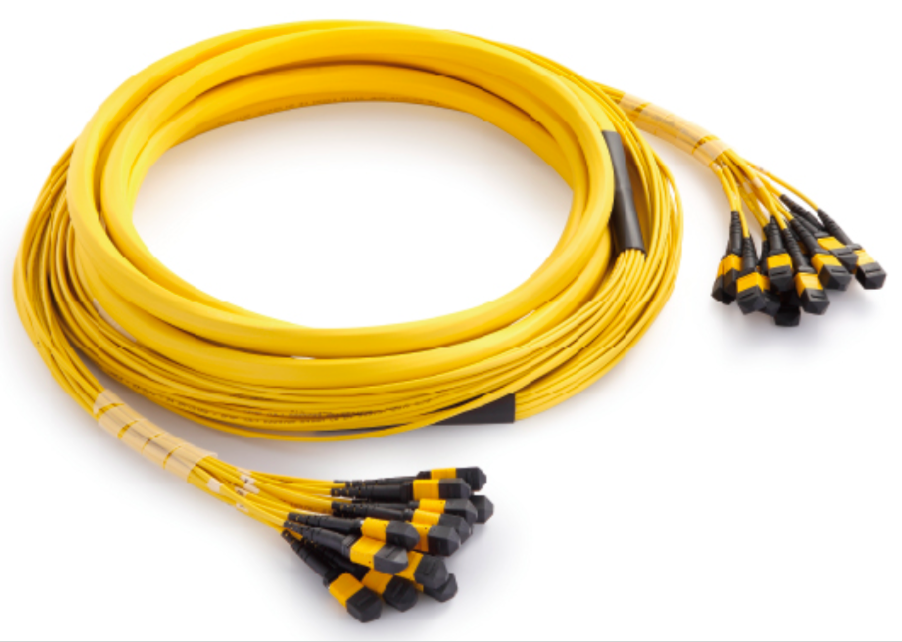

MPO/MTP预端接主干光缆
简要描述：澳科赛的MPO/MTP预端接主干光缆是为高密度解决方案而设计的，可为用户提供高可靠性、稳定性和卓越质量（低插入损耗）的预端接光缆和配套产品，这种产品通常部署在数据中心解决方案中，这将优化您的数据中心的网络系统。同时所有的光缆端接都在工厂内完成，100%的工厂测试，保证了良好的品质。
连接器组件经工厂预先端接、100%测试
供货时含光衰减测量报告
可提供8芯-144芯MPO/MTP预端接主干光缆
支持OS2、OM1、OM2、OM3、OM4、OM5
可提供低损耗产品
具含Pin导针（公头型）和不含Pin导针（母头型）连接器选项
根据客户的要求定制长度和极性

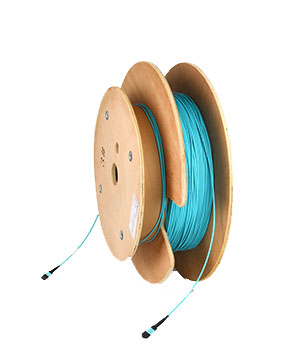

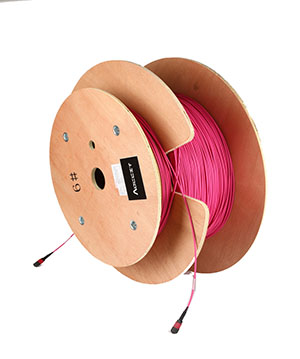

大于50米带轴包装
可提供双护套干光缆

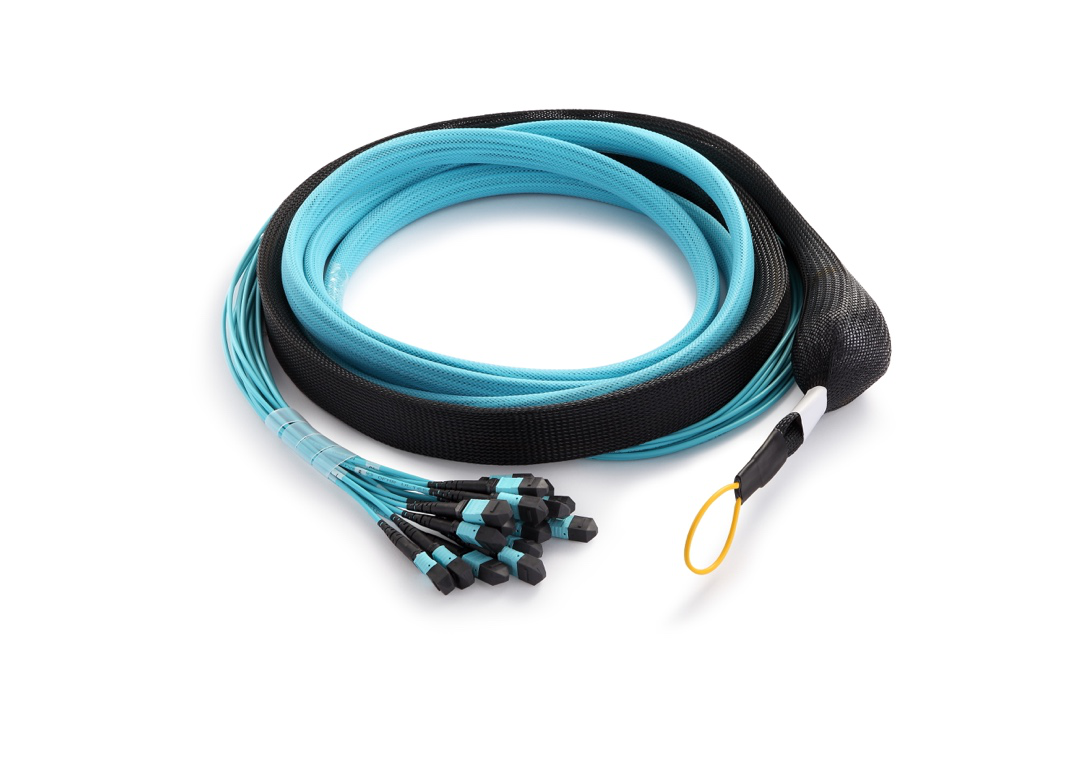

可定制带拉环
规格
| 跳线接口类型 | MPO/MTP |
| 光缆结构 | 8/12/24/36/48/72/96/144芯 |
| 总长度 | 可定制 |
| 研磨端面 | APC/UPC/PC |
| MPO选项 | OS2/OM1/OM2/OM3/OM4/OM5 |
| 光缆护套 | LSZH/OFNR/OFNP |
光学性能
| MPO类型 | 连接器端面 | 类型 | 插入损耗 | 回波损耗 |
| 单模MPO | APC 倾斜8度端面 | 标准 | ≤ 0.75dB(典型值0.25dB) | ≥ 55dB |
| APC 倾斜8度端面 | 低损耗 | ≤ 0.35dB(典型值0.15dB) | ≥ 50dB | |
| 多模MPO | PC 0度端面 | 62.5/125标准 | ≤ 0.6dB(典型值0.2dB) | ≥ 20dB |
| PC 0度端面 | 62.5/125低损耗 | ≤ 0.35dB(典型值0.15dB) | ≥ 20dB | |
| PC 0度端面 | 50/125标准 | ≤ 0.6dB(典型值0.2dB) | ≥ 25dB | |
| PC 0度端面 | 50/125低损耗 | ≤ 0.35dB(典型值0.15dB) | ≥ 25dB |
订购信息：
| 序号 | 产品型号 | 产品描述 | 光纤芯数 |
光缆类型 MPO/MTP |
公头/母头 | 纤芯类型 |
| 1 | MOF08F08S1BL0-xxxMD | MPOF-MPOF 8-Fiber, Minicore LSZH, Method B, no pulling eye | 8 | MPO Trunk | Female | OS1/OS2 |
| 2 | MOF12F12S1BL0-xxxMD | MPOF-MPOF 12-Fiber, Minicore LSZH, Method B, no pulling eye | 12 | MPO Trunk | Female | OS1/OS2 |
| 3 | MOF12X2F12X2S1BL0-xxxMD | MPOF-MPOF 24-Fiber, Minicore LSZH, Method B, no pulling eye | 24 | MPO Trunk | Female | OS1/OS2 |
| 4 | MOF12X4F12X4S1BL0-xxxMD | MPOF-MPOF 48-Fiber, Minicore LSZH, Method B, no pulling eye | 48 | MPO Trunk | Female | OS1/OS2 |
| 5 | MOF12X6F12X6S1BL0-xxxMD | MPOF-MPOF 72-Fiber, Minicore LSZH, Method B, no pulling eye | 72 | MPO Trunk | Female | OS1/OS2 |
| 6 | MOF12X8F12X8S1BL0-xxxMD | MPOF-MPOF 96-Fiber, Minicore LSZH, Method B, no pulling eye | 96 | MPO Trunk | Female | OS1/OS2 |
| 7 | MOF12X12F12X12S1BL0-xxxMD | MPOF-MPOF 144-Fiber, Minicore LSZH, Method B, no pulling eye | 144 | MPO Trunk | Female | OS1/OS2 |
| 8 | MOF08F08M3BL0-xxxMD | MPOF-MPOF 8-Fiber, Minicore LSZH, Method B, no pulling eye | 8 | MPO Trunk | Female | OM3 |
| 9 | MOF12F12M3BL0-xxxMD | MPOF-MPOF 12-Fiber, Minicore LSZH, Method B, no pulling eye | 12 | MPO Trunk | Female | OM3 |
| 10 | MOF12X2F12X2M3BL0-xxxMD | MPOF-MPOF 24-Fiber, Minicore LSZH, Method B, no pulling eye | 24 | MPO Trunk | Female | OM3 |
| 11 | MOF12X4F12X4M3BL0-xxxMD | MPOF-MPOF 48-Fiber, Minicore LSZH, Method B, no pulling eye | 48 | MPO Trunk | Female | OM3 |
| 12 | MOF12X6F12X6M3BL0-xxxMD | MPOF-MPOF 72-Fiber, Minicore LSZH, Method B, no pulling eye | 72 | MPO Trunk | Female | OM3 |
| 13 | MOF12X8F12X8M3BL0-xxxMD | MPOF-MPOF 96-Fiber, Minicore LSZH, Method B, no pulling eye | 96 | MPO Trunk | Female | OM3 |
| 14 | MOF12X12F12X12M3BL0-xxxMD | MPOF-MPOF 144-Fiber, Minicore LSZH, Method B, no pulling eye | 144 | MPO Trunk | Female | OM3 |
| 15 | MOF08F08M4BL0-xxxMD | MPOF-MPOF 8-Fiber, Minicore LSZH, Method B, no pulling eye | 8 | MPO Trunk | Female | OM4 |
| 16 | MOF12F12M4BL0-xxxMD | MPOF-MPOF 12-Fiber, Minicore LSZH, Method B, no pulling eye | 12 | MPO Trunk | Female | OM4 |
| 17 | MOF12X2F12X2M4BL0-xxxMD | MPOF-MPOF 24-Fiber, Minicore LSZH, Method B, no pulling eye | 24 | MPO Trunk | Female | OM4 |
| 18 | MOF12X4F12X4M4BL0-xxxMD | MPOF-MPOF 48-Fiber, Minicore LSZH, Method B, no pulling eye | 48 | MPO Trunk | Female | OM4 |
| 19 | MOF12X6F12X6M4BL0-xxxMD | MPOF-MPOF 72-Fiber, Minicore LSZH, Method B, no pulling eye | 72 | MPO Trunk | Female | OM4 |
| 20 | MOF12X8F12X8M4BL0-xxxMD | MPOF-MPOF 96-Fiber, Minicore LSZH, Method B, no pulling eye | 96 | MPO Trunk | Female | OM4 |
| 21 | MOF12X12F12X12M4BL0-xxxMD | MPOF-MPOF 144-Fiber, Minicore LSZH, Method B, no pulling eye | 144 | MPO Trunk | Female | OM4 |
例：MOF12F12S1BL0-010MD ， 1O米两端12芯单模MPO， B极性，普通损耗
M:MPO光缆
O:日本MPO; T:美国MTP
第一个连接头：F:母头； M：公头；
8：芯；12：12芯 24：24芯
第二个连接头：F:母头； M：公头；
8：芯；12：12芯 24：24芯
S1:单模；M3:OM3; M4:OM4
两端12芯 A:A极性；B:B极性；C:C极性 两端24芯：1:直向； 2：交叉
L：LSZH R OFNR P:OFNP
0：无拉环；1：第一端有拉环；2：第二端有拉环；3：两端都带拉环
001M:1米
最后空或D：普通损耗；B:低损耗
